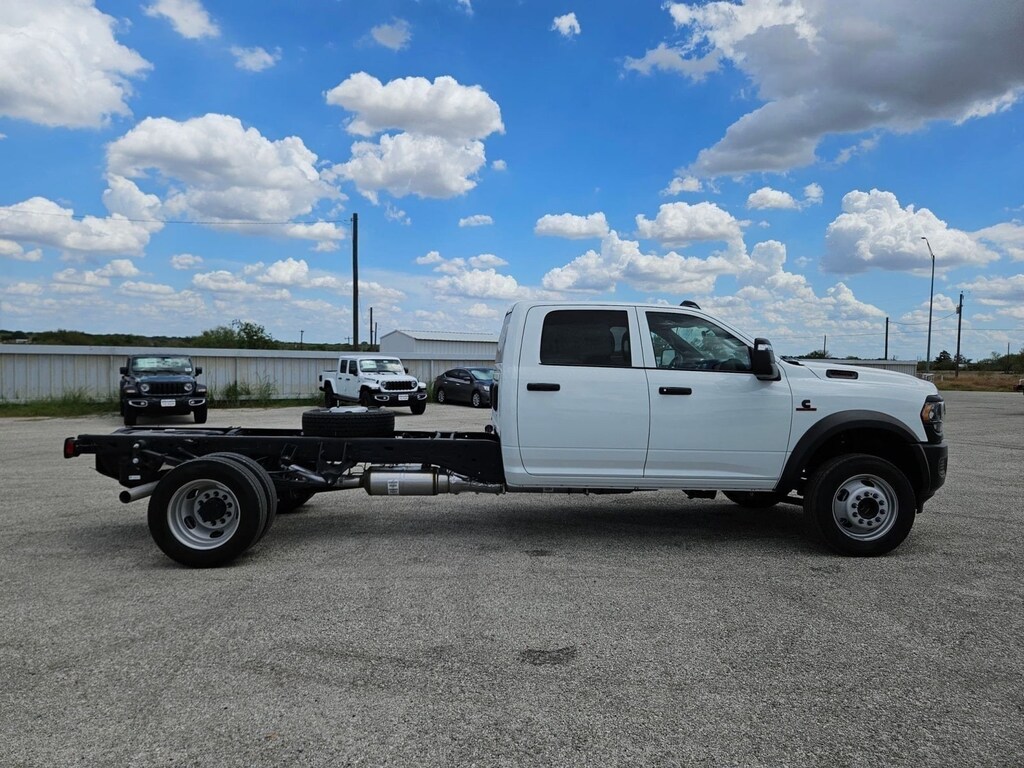

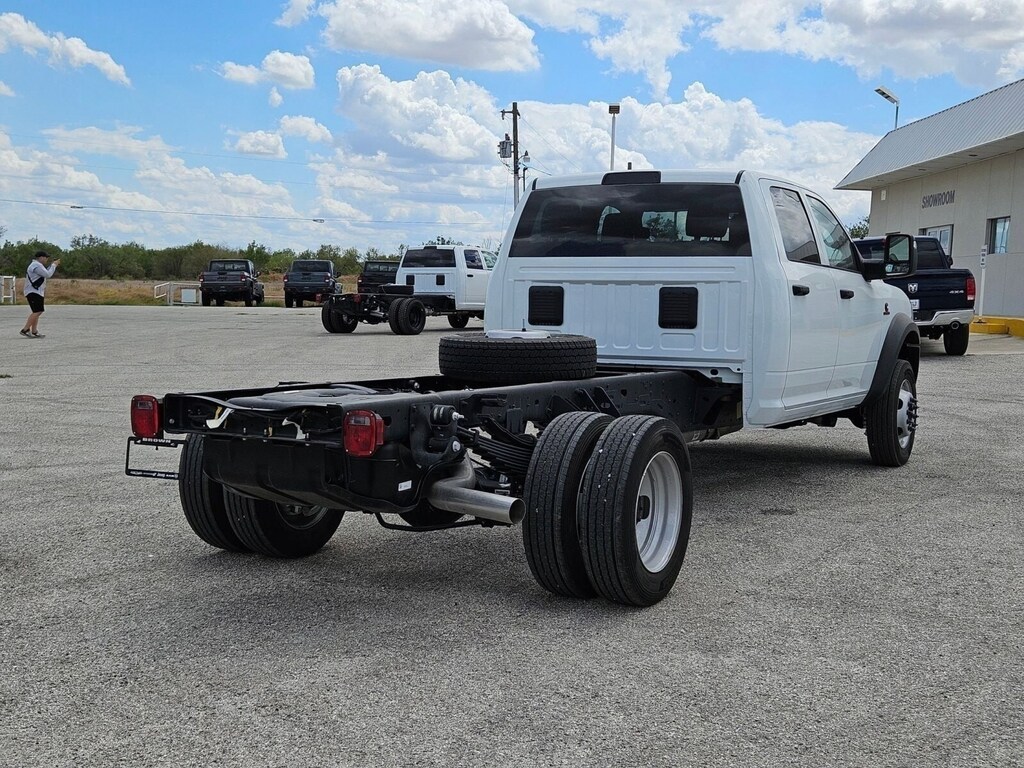

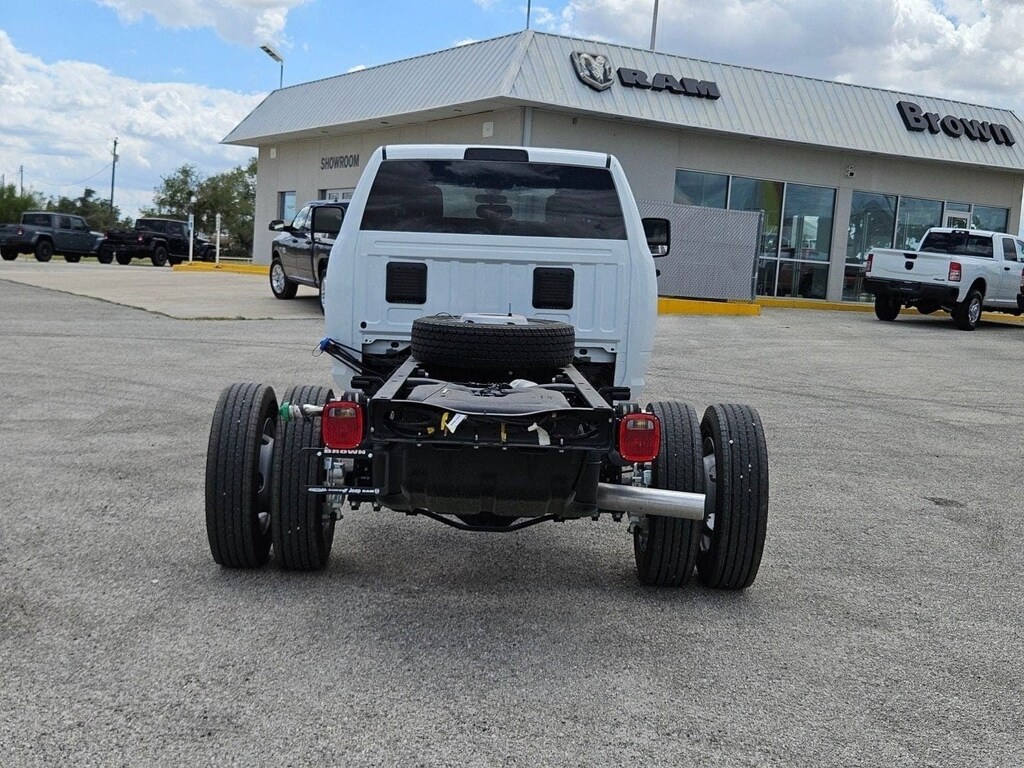

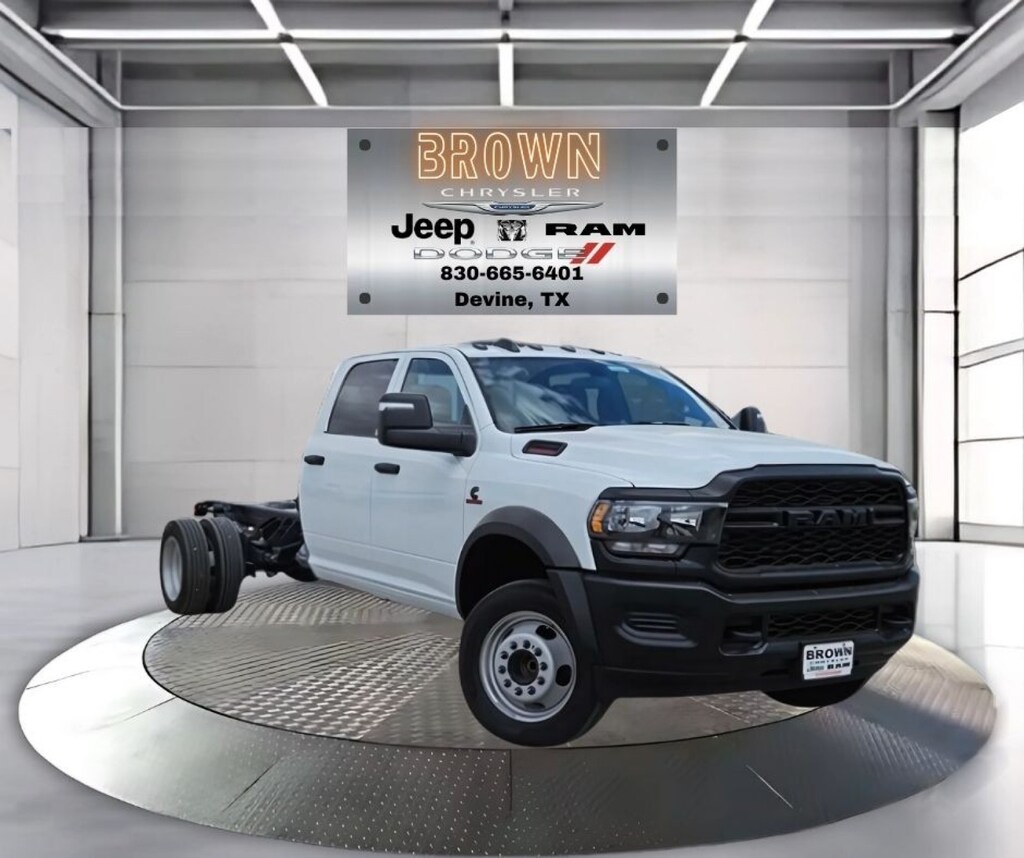

New 2024 Ram 5500 Chassis Cab 5500 TRADESMAN CHASSIS CREW CAB 4X2 84' CA Pickup Photo 1 of 20
New 2024 Ram5500 Chassis Cab 5500 TRADESMAN CHASSIS CREW CAB 4X2 84' CA
- Exterior Color
- Bright White
- Interior Color
- Black
- Body/Seating
- Pickup/3 seats
- Transmission
- 6-Spd Auto Aisin AS69RC HD Trans
- Drivetrain
- 4x2
- Engine
- 6.7L I6 Cummins Turbo Diesel Engine
- VIN
- 3C7WRMFL2RG313684
- Stock Number
- D19348
Ram
5500 Chassis Cab
Highlighted Features
- Emergency communication system
- Wireless phone connectivity
- Perimeter/approach lights
- Fully automatic headlights
- Dual rear wheels
- Heated door mirrors
- Trailer sway control
Included Packages & Accessories
- Temperature and Compass Gauge
- 77 Mph Maximum Speed
- GPS Antenna Input
- Black Exterior Mirrors
- Manuarl Telescoping Mirrors
- Manual Folding Exterior Mirrors
- Front License Plate Bracket
- All Radio Equipped Vehicles
- Global Telematics Box Module
- 225/70R19.5G All Position Tires
- Uconnect 3 Radio with 5" Display
- 19.5" x 6.0" Steel Wheels
- For Details, Visit DriveUconnect.com
- Integrated Voice Command with Bluetooth
- Monotone Paint Application
- Mirror Power Heat Fold Telescope Black
- Exterior Mirrors with Supplemental Signals
- Exterior Mirrors Courtesy Lamps
- Power Adjust Mirrors
- Power-Adjustable Convex Aux Mirrors
- Mirror Running Lights
- Exterior Mirrors with Heating Element
- Max Tow Package
- 4.89 Axle Ratio
- Quick Order Package 2YA Tradesman
- Black Exterior Truck Badging
- Black Wheel Flares
- Door Sill Scuff Pads
- Glove Box
- Matte Black Grille Surround
- Halogen Quad Headlamps
- Map/Courtesy Lamp
- Overhead Console
- Overhead Cupholder Lamp
- Rear Dome Lamp
- 40/20/40 Split Bench Seat
- Remote USB Port - Charge Only
- Storage Tray
- 6-Speed Automatic Aisin AS69RC Heavy Duty Transmission
- Urethane Shift Control
- 6.7L I6 Cummins Turbo Diesel Engine
- 87 Mph Maximum Speed
- B-20 Bio Diesel Capability
- Clean Idle Emissions Label
- Cummins Turbo Diesel Badge
- Current Generation Engine Controller
- Dual 730 Amp Maintenance Free Batteries
- Electronically Controlled Throttle
- 19,500 lbs GVWR
- Selective Catalytic Reduction
- Smart Diesel Exhaust Brake
- Supplemental Heater
- Full Size Spare Tire
- 19.5" Steel Spare Wheel
- Trailer Brake Control
- Trailer Light Check
- Cloth 40/20/40 Bench Seat
- 2 Way Rear Headrest Seat
- 4 Way Front Headrests
- Manual Adjust 4-Way Driver Seat
- Front Armrest with Cupholders
- Manual Adjust 4-Way Front Passenger Seat
- Rear Folding Seat
Included Packages & Options
- 6.7L I6 Cummins Turbo Diesel Engine$9,295
- 87 Mph Maximum Speed
- B-20 Bio Diesel Capability
- Clean Idle Emissions Label
- Cummins Turbo Diesel Badge
- Current Generation Engine Controller
- Dual 730 Amp Maintenance Free Batteries
- Electronically Controlled Throttle
- 19,500 lbs GVWR
- Selective Catalytic Reduction
- Smart Diesel Exhaust Brake
- Supplemental Heater
- Max Tow Package$1,295
- 4.89 Axle Ratio
- 6-Speed Automatic Aisin AS69RC Heavy Duty Transmission$1,000
- Urethane Shift Control
- Trailer Brake Control$465
- Trailer Light Check
- Full Size Spare Tire$395
- 19.5" Steel Spare Wheel
- Cloth 40/20/40 Bench Seat$295
- 2 Way Rear Headrest Seat
- 40/20/40 Split Bench Seat
- 4 Way Front Headrests
- Manual Adjust 4-Way Driver Seat
- Front Armrest with Cupholders
- Manual Adjust 4-Way Front Passenger Seat
- Rear Folding Seat
Included Options
- 77 Mph Maximum Speed$95
Standard Specifications
- 1-touch down
- 1-touch up
- Air conditioning
- Driver door bin
- Emergency communication system: SiriusXM Guardian
- Front beverage holders
- Overhead console
- Passenger door bin
- Passenger vanity mirror
- Power windows
- Proximity key: push button start only
- Rear beverage holders
- Rear door bins
- Speed control
- Tilt steering wheel
- Dual rear wheels
- Front anti-roll bar
- Front tires: 225/70R19.5G
- Power steering
- Rear anti-roll bar
- Rear tires: 225/70R19.5G
- Wheel size: 19.5"
- 1st row LCD monitors: 2
- Primary LCD size: 5.0"
- Radio data system
- Speakers: 6
- Wireless phone connectivity: Uconnect w/Bluetooth
- Basic warranty: 36 months/36,000miles
- Corrosion perforation warranty: 60 months/100,000miles
- Diesel engine warranty: 60 months/100,000miles
- Powertrain warranty: 60 months/60,000miles
- Roadside assistance coverage: 60 months/100,000miles
- Front center armrest: w/storage
- Front seats: bench
- Max seating capacity: 3
- Rear seats: bench
- Rear seats Folding position: fold-up cushion
- Seat Upholstery: cloth
- Compressor: intercooled turbo
- Cylinder configuration: I-6
- Cylinder deactivation
- Drive type: rear-wheel
- Engine liters: 6.7L
- Engine location: front
- Fuel tank capacity: 52.0gal.
- Horsepower: 360hp @ 2,800RPM
- Hybrid traction battery type: none
- Limited slip differential: mechanical
- Mode select transmission
- Number of valves: 24
- Recommended fuel: Diesel
- Sequential multi-point fuel injection
- Standard fuel economy fuel type: gasoline
- Torque: 800 lb.-ft. @ 1,800RPM
- Transmission: 6 speed automatic
- Variable intake manifold
- Variable valve control
- Approach angle: 26 deg
- Departure angle: 28 deg
- Ground clearance (max): 218mm (8.6")
- Ground clearance (min): 206mm (8.1")
- Ramp breakover angle: 20 deg
- Heated door mirrors
- Left rear passenger door: conventional
- Power door mirrors
- Right rear passenger: conventional
- Trailer sway control
- Turn signal indicator mirrors
- Compression ratio: 16.20 to 1
- Curb weight: 3,766kg (8,303lbs)
- Engine bore x stroke: 107.0mm x 124.0mm (4.21" x 4.88")
- Engine displacement: 6.7 L
- Engine horsepower: 360hp @ 2,800RPM
- Engine torque: 800 lb.-ft. @ 1,800RPM
- Exterior body width: 2,207mm (86.9")
- Exterior height: 2,068mm (81.4")
- Exterior length: 7,346mm (289.2")
- Front headroom: 1,039mm (40.9")
- Front hiproom: 1,598mm (62.9")
- Front legroom: 1,039mm (40.9")
- Front shoulder room: 1,674mm (65.9")
- GVWR: 8,845kg (19,500lbs)
- Passenger volume: 3,528L (124.6 cu.ft.)
- Payload: 5,080kg (11,200lbs)
- Rear headroom: 1,011mm (39.8")
- Rear hiproom: 1,593mm (62.7")
- Rear legroom: 1,021mm (40.2")
- Rear shoulder room: 1,666mm (65.6")
- Towing capacity: 10,678kg (23,540lbs)
- Turning radius: 9.1m (29.8')
- Wheelbase: 5,014mm (197.4")
- Appearance: analog
- Compass
- Delay-off headlights
- Front reading lights
- Fully automatic headlights
- Outside temperature display
- Tachometer
- Variably intermittent wipers
- Voltmeter
- 4 wheel disc brakes
- ABS brakes
- Adjustable head restraints: driver and passenger w/tilt
- Dual front impact airbags
- Electronic stability
- Ignition disable
- Occupant sensing airbag
- Perimeter/approach lights
- Traction control
Standard Features
- 87 Mph Maximum Speed
- B-20 Bio Diesel Capability
- Clean Idle Emissions Label
- Cummins Turbo Diesel Badge
- Current Generation Engine Controller
- Dual 730 Amp Maintenance Free Batteries
- Electronically Controlled Throttle
- 19,500 lbs GVWR
- Selective Catalytic Reduction
- Smart Diesel Exhaust Brake
- Supplemental Heater
- 4.89 Axle Ratio
- Urethane Shift Control
- Trailer Light Check
- 19.5" Steel Spare Wheel
- 2 Way Rear Headrest Seat
- 40/20/40 Split Bench Seat
- 4 Way Front Headrests
- Manual Adjust 4-Way Driver Seat
- Front Armrest with Cupholders
- Manual Adjust 4-Way Front Passenger Seat
- Rear Folding Seat
- Black Exterior Truck Badging
- Black Wheel Flares
- Door Sill Scuff Pads
- Glove Box
- Matte Black Grille Surround
- Halogen Quad Headlamps
- Map/Courtesy Lamp
- Overhead Console
- Overhead Cupholder Lamp
- Rear Dome Lamp
- Remote USB Port - Charge Only
- Storage Tray
Dealer Notes
Contact Brown Dodge Chrysler Jeep Ram today for information on dozens of vehicles like this 2024 Ram 5500 Chassis Cab Tradesman 4x2 Crew Cab 84 CA 197.4 WB. This Ram includes: FULL SIZE SPARE TIRE Conventional Spare Tire QUICK ORDER PACKAGE 2YA TRADESMAN MAX TOW PACKAGE TRAILER BRAKE CONTROL 77 MPH MAXIMUM SPEED ENGINE: 6.7L I6 CUMMINS TURBO DIESEL Diesel Fuel Straight 6 Cylinder Engine Turbocharged BRIGHT WHITE CLEARCOAT TRANSMISSION: 6-SPEED AUTO AISIN AS69RC HD Transmission w/Dual Shift Mode A/T 6-Speed A/T *Note - For third party subscriptions or services, please contact the dealer for more information.* Whether for work or play, this Ram 5500 Chassis Cab is built to handle the job. You deserve a vehicle designed for higher expectations. This Ram 5500 Chassis Cab Tradesman 4x2 Crew Cab 84 CA 197.4 WB delivers with a luxurious, well-appointed interior and world-class engineering. The Ram 5500 Chassis Cab Tradesman 4x2 Crew Cab 84 CA 197.4 WB will provide you with everything you have always wanted in a car -- Quality, Reliability, and Character.
* MSRP is the Manufacturer's Suggested Retail Price (MSRP) of the vehicle. It does not include any taxes, fees or other charges. Consult your dealer for complete details.
* You may not qualify for the offers, incentives, or financing. Offers, incentives, or financing are subject to expiration and other restrictions. See dealer for qualifications and complete details.
* Images, prices, and options shown, including vehicle color, trim, options, and other specifications are subject to availability, incentive offerings, and credit worthiness.
* Manufacturer’s Rebate subject to residency restrictions. Any customer not meeting the residency restrictions will receive a dealer discount in the same amount of the manufacturer’s rebate.
* In transit means that vehicles have been built, but have not yet arrived at your dealer. Images shown may not necessarily represent identical vehicles in transit to your dealership. See your dealer for actual price, payments and complete details.
- MSRP
- $73,345
- Brown's Discount
- -$6,355
- Price
- $66,990
